AlNiCo Magnet

AINiCo is composed primarily of Aluminum Nickel Cobalt and also Copper and Titanium. They are manufactured through either casting or sintering process. Cast AINiCo may be manufactured in complex shapes such as horseshoes not possible with other magnet materials. Sintered AINiCo offer slightly lower magnetic properties but better mechanical characteristics. it can be efficiently magnetized in any direction, and for anisotropic AINiCo

magnet, it generally has greater magnetic capacitive in a preferred orientation than isotropic types. AINiCo is hard and brittle, Machining or drilling cannot therefore be accomplished by ordinary methods. Holes are usually cored in at the foundry, and magnets are cast close to final size and then finish machined to closer tolerances.

➢ Advantages of AlNiCo Magnet:

1.Customized designs are available.

2.Max working temperature can be as high as 550°C.

3.Disadvantage: Br and BH(max)are not as high as rare earth magnet.

4.High energies and relatively low coercivity.

5.High magnetic flux density; low mold charge stable temperature properties; easy to shap.

➢ Application of AlNiCo Magnet:

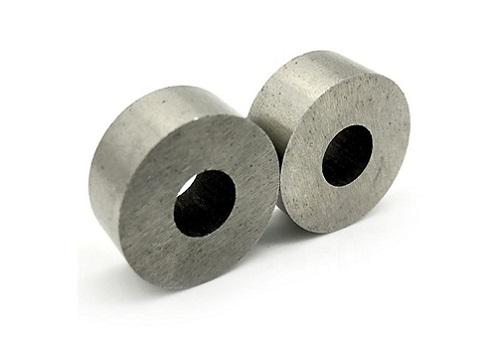

Disc AlNiCo Magnet

————

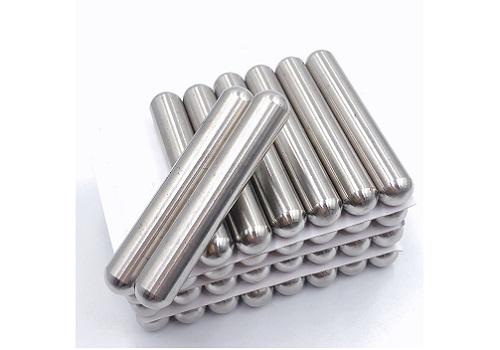

Rod AlNiCo Magnet

————
